VILLA Series Complete Water Purification System for Whole House Water Treatment

Good water treatment at home is not simply about making water look clear. Depending on the local water source, a house may receive water containing sediment, chlorine, hardness, dissolved salts, unpleasant odors, or other substances that affect how the water tastes and how it behaves in daily use. This is where a properly designed VILLA Series Complete Water Purification System can make a practical difference.

At Qingdao Yanhui Environmental Protection Technology Co., Ltd., we have been working in the water treatment industry since 2015. Our main business covers Seawater Desalination, high-salinity wastewater treatment, concentration and purification, and industrial wastewater treatment. We also provide customized water treatment equipment and integrated engineering services covering R&D, design, manufacturing, installation, commissioning, operation, and maintenance.

Although our engineering background includes large and demanding water treatment projects, the basic principle remains the same for a Villa Water Purification System: understand the incoming water first, determine what needs to be removed, and then select a treatment process that fits the property.

Our VILLA Series Complete Water Purification System is intended as an integrated water treatment solution for villas, large residential properties, private residences, and similar applications. Depending on the water source and actual requirements, the system can combine filtration, activated carbon, softening, reverse osmosis, disinfection, storage, pumping, and other treatment stages.

We do not believe every villa needs the same equipment. A property supplied by treated municipal water can have very different needs from a coastal villa using groundwater or another local water source. The right system starts with the water, not the product name.

1. What Is the VILLA Series Complete Water Purification System?

The VILLA Series Complete Water Purification System is a residential water treatment solution designed to provide treated water for different household needs. Depending on the project, the system can be designed as a whole-house water purification system, a drinking-water system, or a combination of both.

The phrase “complete water purification system” is important here. Instead of looking at one filter alone, we consider the complete water path from the incoming source to the final point of use.

For example, a villa may need general filtration for the whole property while requiring a more advanced RO purification stage for drinking and cooking water. Another property may need water softening because the incoming water contains a high level of hardness. A coastal property may require a different treatment arrangement because of its source-water characteristics.

EPA explains that household water treatment technologies can include activated carbon, reverse osmosis, ion exchange, ultraviolet treatment, and other methods, with each technology addressing different water-quality concerns.

WHO also emphasizes that safe drinking-water management should consider risks from the source through to the consumer rather than looking at only one treatment step.

That whole-system approach is also how we look at a villa project.

Whole House Water Treatment vs. Drinking Water Purification

These two ideas are related but not identical.

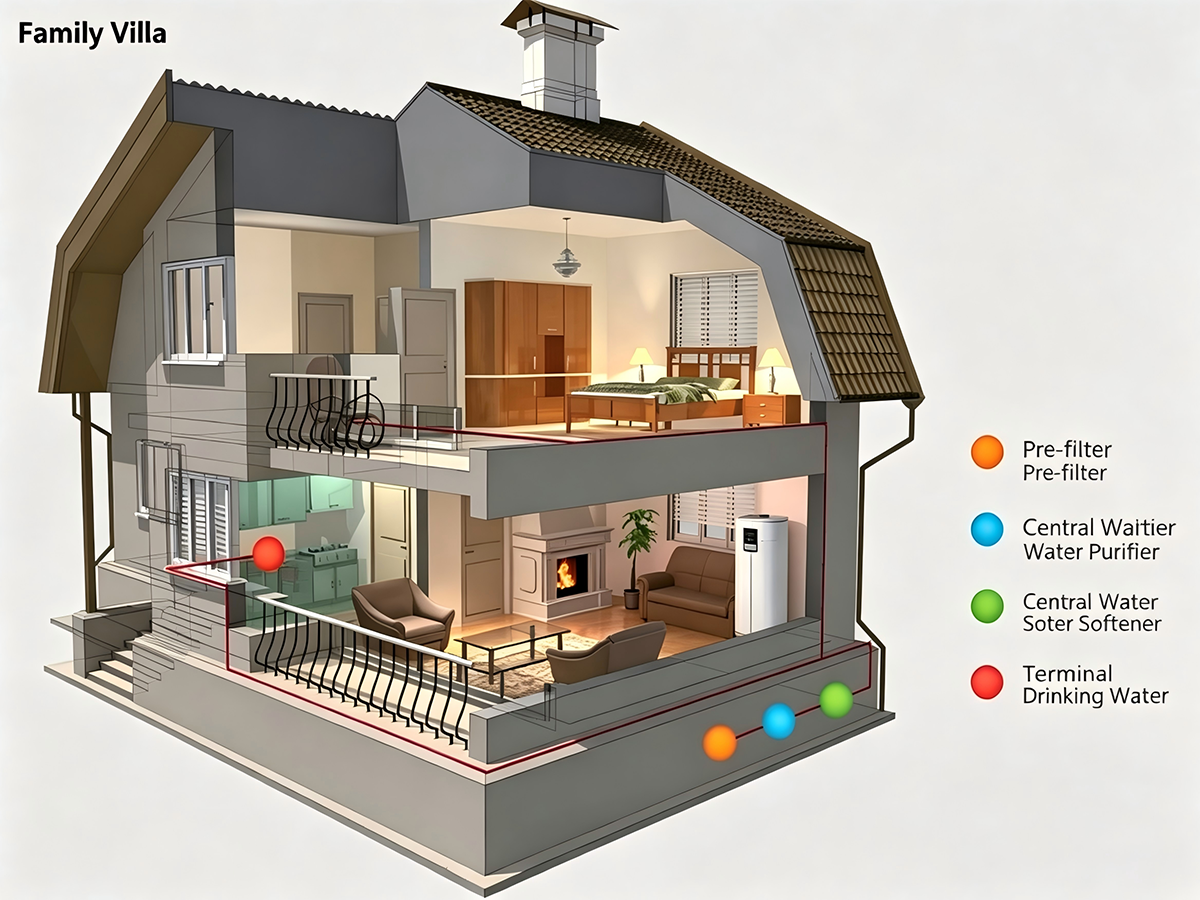

A whole house water purification system treats water before it is distributed around the property. This can help provide treated water for showers, washing, kitchen use, laundry, and other household purposes, depending on the system design.

A drinking-water purification system focuses more closely on water intended for drinking and food preparation. It may use additional treatment, such as RO, depending on the incoming water and target quality.

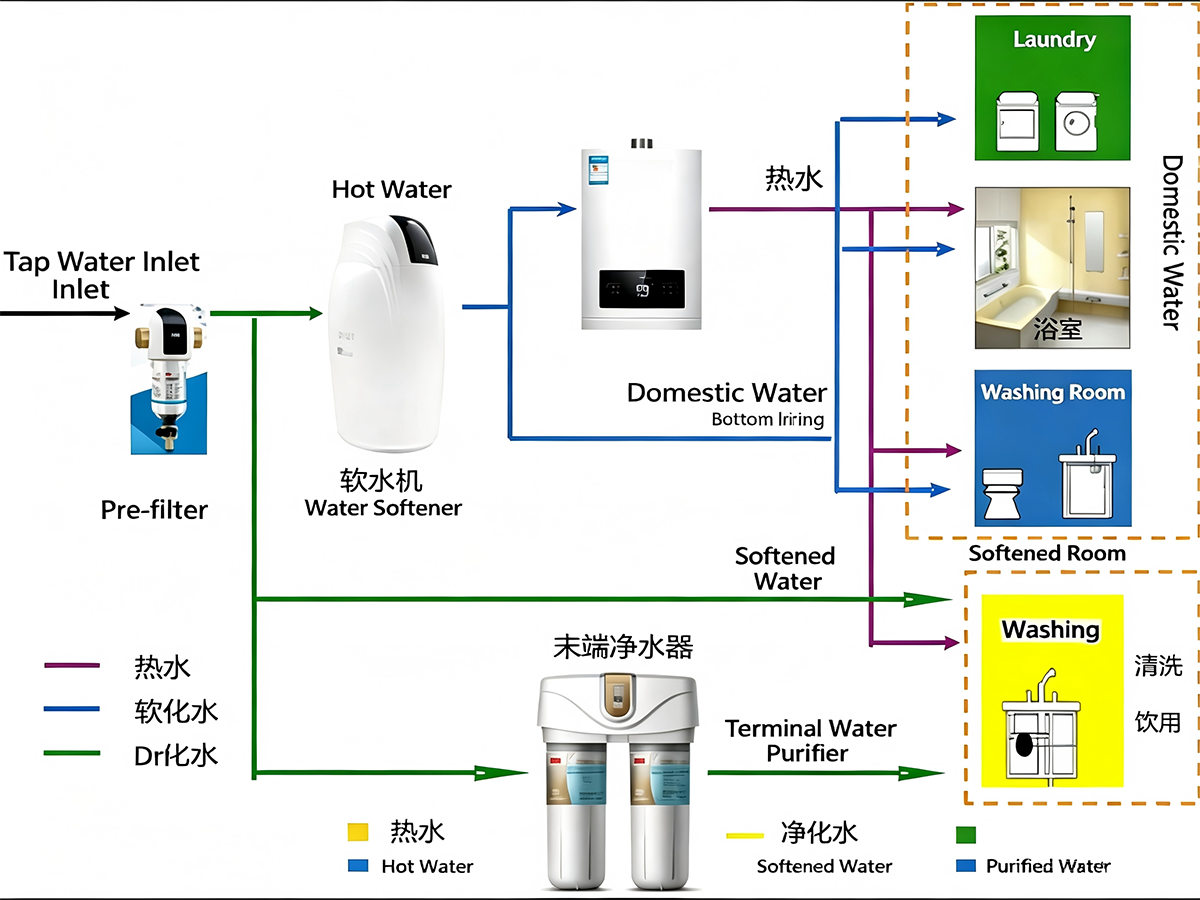

For a large villa, combining these approaches can be practical. General water treatment can protect the household water supply, while a dedicated high-quality drinking-water stage can be installed at the kitchen or another point of use.

2. How Does a Villa Water Purification System Work?

The exact process varies from one project to another, but a typical Villa Water Purification System can be understood as several treatment stages working together.

A representative process may look like this:

Incoming Water → Sediment Filtration → Activated Carbon → Water Softening → Fine Filtration → RO → Disinfection → Storage → Household Distribution

Not every project needs every stage. The actual configuration should be based on the water analysis and the intended use.

Stage 1: Incoming Water Assessment

Before we select equipment, we need to know where the water comes from.

Possible sources include municipal water, groundwater, surface water, rainwater collection systems, private wells, or other local supplies. Each source can have different characteristics.

For example, groundwater may have hardness or iron-related issues. Municipal water may contain disinfectant residuals. Surface water can have higher turbidity and organic contamination. Coastal or special-source water may contain much higher dissolved salt levels.

This is why we recommend obtaining a basic water analysis before finalizing a customized villa water purification system.

Stage 2: Sediment Filtration

The first physical filtration stage is usually intended to reduce larger suspended particles such as sand, rust, and other visible or relatively large particles.

This stage is relatively simple, but it plays an important protective role. By removing larger particles early, downstream filters, pumps, membranes, and valves can operate in a cleaner environment.

Stage 3: Activated Carbon Filtration

Activated carbon is widely used in drinking-water treatment because it can adsorb certain organic compounds and help improve taste and odor.

EPA describes granular activated carbon as a porous adsorption medium with a very large internal surface area. Its performance depends on the specific contaminant and operating conditions.

For a villa application, activated carbon can therefore be a useful part of the pretreatment process, especially when chlorine, taste, or odor needs to be addressed.

Stage 4: Water Softening

Hard water contains minerals such as calcium and magnesium. Depending on the concentration, hardness can contribute to scale formation in pipes, heaters, fixtures, and other equipment.

A water softener can be used when the raw water and household requirements justify it.

We do not automatically include a softener in every system. If the incoming water has low hardness, adding a softener may not provide enough practical benefit to justify the additional equipment and maintenance.

Stage 5: Reverse Osmosis

Reverse osmosis, commonly called RO, is often selected when the household requires a deeper reduction of dissolved substances.

RO uses pressure to force water through a semipermeable membrane. Treated water passes through the membrane while a portion of the dissolved contaminants is retained in the concentrate stream.

EPA describes RO as a membrane treatment process capable of reducing a broad range of contaminants, including many dissolved solids and inorganic substances. EPA also notes that RO produces reject water and may require pretreatment depending on feed-water quality.

This means RO can be very useful, but it is not simply a matter of installing a membrane and forgetting about the rest of the system.

Stage 6: Disinfection and Final Treatment

Depending on the application, additional treatment can be added after filtration or RO.

UV disinfection, for example, can be considered as part of a suitable treatment arrangement where microbial control is required. Other treatment methods may also be considered depending on the water source and final application.

WHO recommends a risk-based approach to drinking-water safety and recognizes the importance of multiple treatment barriers and proper management from source to consumer.

3. Main Features of the VILLA Series Complete Water Purification System

A residential water purification system should be effective, but it should also be practical. Nobody wants a complicated machine that takes up half the utility room and requires an engineer every time a filter needs attention.

When we develop a VILLA Series Complete Water Purification System, we therefore consider water quality, household demand, installation space, maintenance, automation, and daily operation together.

Integrated Treatment Design

The VILLA Series can integrate several treatment stages into one coordinated system.

Instead of asking a homeowner to purchase separate filtration equipment from different suppliers, an integrated design allows the treatment stages to be planned as one process.

This can make pipe connections, equipment arrangement, maintenance, and future servicing easier to manage.

Customized for Different Water Sources

One villa may have municipal water. Another may rely on groundwater. A third may be located near the coast.

The system can therefore be configured according to the actual source-water characteristics.

This is particularly important for properties in areas where water quality changes seasonally or where the incoming water has a specific issue such as high hardness, salinity, turbidity, or unpleasant taste.

Flexible Treatment Levels

Not every household needs the same level of treatment.

For example, a customer may want basic whole-house filtration plus a separate RO drinking-water system. Another may want centralized treatment for most household water uses.

We can discuss the different treatment levels and then select the configuration that makes practical sense for the property.

Compact Equipment Arrangement

Villa projects often have more available space than apartment kitchens, but that does not mean space is unlimited.

Equipment may need to fit inside a utility room, garage, basement, equipment room, outdoor shelter, or another designated area.

We consider equipment dimensions, pipe routing, electrical connections, drainage, access for maintenance, and transportation when preparing the layout.

Automatic Operation

Depending on the configuration, automatic valves and controls can reduce routine manual operation.

Water level, pump status, pressure, filtration cycles, and other operating conditions can be monitored or controlled according to system design.

The automation level can be adjusted according to the size of the villa and the customer's preferences.

Corrosion-Resistant Components

Water treatment equipment operates in a humid environment. Some properties may also have more demanding water chemistry.

Suitable materials can therefore be selected according to the application, including stainless steel components, appropriate plastic piping, membrane housings, pumps, valves, and other water-contact components.

The final material specification should always be confirmed against the actual water chemistry and treatment process.

4. Technical Selection: How We Choose the Right System

Choosing a VILLA Series Complete Water Purification System should not be based only on the number of filter stages shown in a product brochure.

More stages do not automatically mean better water. What matters is whether each stage has a clear purpose.

Water Source

The first question is simple: where does the water come from?

Municipal water, groundwater, surface water, well water, rainwater, and seawater have very different treatment requirements.

Water Quality

A basic water analysis can provide useful information such as turbidity, pH, hardness, TDS, conductivity, iron, manganese, chlorine, microbial indicators, and other parameters.

The exact analysis required depends on the water source and the planned application.

Household Water Demand

We also need to understand how much water the villa uses.

A small family residence and a large villa with multiple bathrooms, a kitchen, laundry facilities, landscaping, swimming-pool support systems, and staff accommodation may have very different peak water demands.

The system should therefore consider both average consumption and peak demand.

Drinking Water vs. General Household Water

This is one of the most useful questions to answer early.

Does the customer want treated water throughout the entire house, or mainly purified water for drinking and cooking?

If the goal is whole-house treatment, the system may focus on filtration, softening, and general water-quality improvement. If the customer wants highly purified drinking water, RO and additional treatment may be appropriate at the point of use.

Maintenance Requirements

Every filter eventually needs attention. RO membranes have operating limits. Activated carbon media needs replacement or regeneration depending on the configuration. Water softeners require salt and regeneration management where applicable.

We therefore consider maintenance access when arranging the equipment.

Source: General engineering selection framework based on water-treatment practice and WHO/EPA guidance emphasizing source-water conditions, treatment objectives, and context-specific risk management.

RO Water Efficiency Should Also Be Considered

RO is useful, but it does not convert every drop of feed water into product water.

EPA explains that RO systems produce a treated-water stream and a concentrate or reject stream. EPA's residential WaterSense guidance also highlights the importance of considering reject-water efficiency when selecting point-of-use RO systems.

Source: EPA drinking-water treatment technology guidance and WaterSense home water treatment guidance. Actual performance depends on the specific equipment, feed water, operating conditions, and installation.

5. Where Can the VILLA Series Water Purification System Be Used?

The main target of the VILLA Series Complete Water Purification System is villa and residential water treatment, but the same design concept can also be adapted to other private or small-property applications.

Private Villas

Large villas often have higher water consumption and more complex plumbing than ordinary apartments.

A centralized treatment system can be designed for the property based on household water demand, water source, and the customer's preferred treatment level.

For example, general filtered water can be supplied throughout the house, while a separate RO stage can provide purified drinking water in the kitchen.

Luxury Residential Properties

Large private residences may include guest rooms, multiple kitchens, bathrooms, laundry areas, staff facilities, and other water-consuming spaces.

In these properties, centralized water treatment can simplify the overall water-treatment arrangement.

Holiday Villas and Resorts

Villas in coastal or remote tourist areas may have special water-supply challenges.

Depending on the location, the raw water may come from local municipal systems, wells, or desalinated water. The treatment process can be designed around the available source.

Our wider experience in seawater desalination is useful for coastal projects where high-salinity source water needs to be addressed before the final household water purification stage.

Private Well Water

Private wells can have highly variable water quality.

Some wells may have hardness, iron, manganese, sediment, or other issues. The right treatment system should therefore be based on a water analysis rather than simply copying a standard residential configuration.

Remote Residential Properties

Remote villas may have limited access to municipal water or maintenance services.

For these properties, system simplicity, equipment reliability, storage capacity, automation, spare parts, and maintenance access can be particularly important.

Coastal Properties

Coastal properties require additional attention to source-water salinity when seawater or high-salinity groundwater is involved.

In such cases, desalination may be required before further purification. The final system may combine desalination and household water purification according to the project conditions.

6. Manufacturing, Delivery and Installation

Although a villa water purification system is smaller than a large industrial treatment plant, we still treat the project as an engineering job.

The equipment has to fit the site, match the water source, meet the intended water-quality target, and be practical for the people who will maintain it.

Project Requirement Confirmation

We first collect information about the water source, water quality, household size, estimated water demand, intended use, installation location, and available utilities.

If the customer already has water treatment equipment, we also need to understand its condition and how the new system will connect to the existing installation.

Process Design

After reviewing the information, we determine the treatment sequence.

A typical example might be:

Raw Water → Sediment Filter → Activated Carbon → Softener → Cartridge Filter → RO → UV → Storage Tank → Household Water Supply

Again, this is an example rather than a fixed VILLA Series configuration. Some projects may remove the softener, some may not need RO for the whole house, and some may require additional treatment.

Equipment Manufacturing

After the technical configuration is confirmed, we proceed with equipment manufacturing and assembly.

Components can include filtration units, pumps, valves, membranes, control equipment, storage tanks, piping, instruments, and other supporting parts depending on the final design.

Assembly and Inspection

Before delivery, the system is assembled and checked.

Inspection can include equipment connections, pump operation, pipework, control functions, instrument installation, and other project-specific requirements.

Technical documents and operating instructions are also prepared according to the agreed project scope.

Production Cycle

The production period depends on the system size and configuration.

A relatively standard system can normally be arranged within a shorter production cycle. A customized project requires more time because the process, equipment arrangement, component selection, assembly, testing, and documentation need to be confirmed.

For this reason, we confirm the delivery schedule after the technical configuration is finalized rather than giving an unrealistic fixed number of days before understanding the project.

Packaging and Transportation

Once the equipment has passed the required inspection, we prepare it for transportation.

Land transportation, sea transportation, or multimodal transportation can be selected according to the destination and equipment size.

Depending on the equipment structure, we can use wooden cases, pallets, or containers. Large or heavy equipment is reinforced as needed to reduce movement and impact during transportation.

Source: Project workflow based on our stated equipment engineering, manufacturing, delivery, installation, and commissioning scope. Specific inspection and commissioning procedures depend on the final project configuration.

7. Why Choose Qingdao Yanhui Environmental Protection Technology Co., Ltd.?

When customers purchase a villa water purification system, they are not really buying a collection of filters. They are buying a water-treatment solution that needs to work in a real house for a long time.

That is why we prefer to discuss the actual water problem before discussing equipment models.

Qingdao Yanhui Environmental Protection Technology Co., Ltd. was established in 2015. Our core business includes seawater desalination, high-salinity wastewater treatment, concentration and purification, and industrial wastewater treatment.

Our experience covers different water sources and treatment challenges. This engineering background helps us approach residential projects from a process perspective rather than simply recommending a fixed filter package.

Customized Equipment

We can adjust the system according to raw water quality, household water demand, site conditions, treatment objectives, and customer preferences.

The configuration can include filtration, activated carbon, softening, RO, disinfection, storage, pumping, controls, and other components as required.

Engineering Support

Our service scope can cover R&D, design, manufacturing, installation, commissioning, operation, and maintenance according to the project agreement.

This gives customers one technical team to discuss the water treatment process rather than having to coordinate several unrelated equipment suppliers.

Experience With Difficult Water Conditions

Our work with seawater and high-salinity wastewater means we regularly deal with water that requires careful treatment planning.

Although a villa system is normally much smaller, the same practical thinking applies: raw water first, treatment process second, equipment selection third.

Attention to Installation and Maintenance

We consider equipment access, pipe connections, drainage, electrical requirements, filter replacement, and other practical matters when preparing the system.

A water treatment system should not only produce treated water. It should also be possible for the homeowner or maintenance team to inspect and service it without unnecessary difficulty.

Flexible Commercial and Delivery Arrangements

Payment terms can be arranged according to the project contract, such as advance payment, shipment payment, and balance payment.

The delivery method can be selected according to the equipment dimensions and destination, including land transportation, sea transportation, or multimodal transport.

8. VILLA Series Complete Water Purification System FAQ

What is included in the VILLA Series Complete Water Purification System?

The exact configuration depends on the project. A system may include sediment filtration, activated carbon, water softening, cartridge filtration, RO, UV disinfection, storage, pumps, controls, and other supporting equipment.

We determine the final equipment list according to the water source and intended application.

Can the VILLA Series be used as a whole-house water purification system?

Yes. The system can be designed for whole-house water treatment when the water source and household requirements are suitable.

However, the treatment level should be selected according to the actual water quality and intended uses. Drinking water requirements may differ from water used for bathing, laundry, or general cleaning.

Does every villa need reverse osmosis?

No. RO is useful when a deeper reduction of dissolved contaminants is required, but it is not automatically necessary for every property.

EPA notes that RO can remove a wide range of contaminants but also produces reject water and may require pretreatment.

If the incoming water already meets the requirements for certain household uses, a simpler filtration system may be more practical.

Can the system treat well water?

Yes, but well water should be tested first.

Depending on the test results, the system may need sediment filtration, activated carbon, softening, iron or manganese treatment, RO, disinfection, or another process.

Can the system be used in a coastal villa?

Yes. If the source water is municipal or normal groundwater, the treatment process can be designed accordingly. If the source contains high levels of salt, desalination may be necessary before the household purification stage.

Can the system provide drinking water?

It can be designed for drinking-water applications when the treatment process, materials, disinfection, monitoring, and applicable local requirements are properly considered.

We do not recommend assuming that any general filtration system automatically makes water suitable for drinking. WHO's current drinking-water guidance emphasizes risk management from the source through to the consumer and the importance of locally appropriate requirements.

How often do the filters need to be replaced?

There is no universal replacement interval. Filter life depends on raw-water quality, water consumption, filter type, operating hours, and manufacturer recommendations.

For this reason, we recommend monitoring pressure, flow, water quality, and filter condition rather than using one fixed replacement date for every property.

Does an RO system waste water?

RO creates both treated water and a concentrate stream. The amount of reject water depends on the system design and operating conditions.

EPA specifically notes that RO produces concentrate and that water efficiency should be considered when selecting residential RO systems.

How much space does the system require?

It depends on the equipment configuration and treatment capacity. Before finalizing the design, we can consider the available equipment room, installation height, access routes, drainage, electrical supply, and maintenance space.

Can you customize the VILLA Series for a specific house?

Yes. Customization can be based on water source, water analysis, household demand, treatment target, available space, automation level, and other project conditions.

How long does production take?

The production cycle depends on the configuration. Standard equipment generally has a shorter delivery period, while customized projects require additional time for process design, equipment configuration, manufacturing, assembly, inspection, and documentation.

How is the equipment shipped?

Depending on the destination and equipment size, we can arrange land, sea, or multimodal transportation. Wooden cases, pallets, or containers can be used, with reinforcement according to the equipment structure and transportation conditions.

Conclusion: A Practical Water Purification Solution for Villas

A good VILLA Series Complete Water Purification System should do more than put several filters together. It should match the water source, household demand, treatment target, installation space, and maintenance conditions of the property.

For some villas, a simple filtration and softening system may be enough. For others, a more complete configuration with RO, disinfection, storage, and automatic controls may make more sense. Coastal properties or properties using high-salinity water may require desalination before the final household purification stage.

Our approach is straightforward. We first understand the water. Then we look at how the water will be used. After that, we determine the appropriate treatment process and equipment configuration.

Qingdao Yanhui Environmental Protection Technology Co., Ltd. has been engaged in water treatment since 2015. Our experience includes seawater desalination, high-salinity wastewater treatment, concentration and purification, and industrial wastewater treatment.

For the VILLA Series Complete Water Purification System, we bring the same engineering approach to residential projects. We can provide customized water treatment equipment and integrated services covering R&D, design, manufacturing, installation, commissioning, operation, and maintenance according to the agreed project scope.

Whether the requirement is a whole house water purification system, Villa Water Filtration System, residential RO water purification system, or a more customized water treatment solution, the right starting point is the actual water condition and the property's needs.

Once those details are clear, the equipment becomes much easier to design.

In our view, good residential water treatment is not about adding as many treatment stages as possible. It is about using the right stages, in the right order, for the right water.

Technical Reference Sources

• World Health Organization, Guidelines for Drinking-water Quality: Fourth Edition Incorporating the First, Second and Third Addenda.

• World Health Organization, Compendium of Drinking-water Systems and Technologies from Source to Consumer.

• U.S. Environmental Protection Agency, Overview of Drinking Water Treatment Technologies.

• U.S. Environmental Protection Agency, Point-of-Use Reverse Osmosis Systems.

• U.S. Environmental Protection Agency, WaterSense Guide to Selecting Water Treatment Systems.

Technical note: Water treatment performance depends on raw-water quality, equipment configuration, operating conditions, maintenance, and the intended application. Reference information in this article is provided for general technical guidance and should not be interpreted as a guarantee of drinking-water compliance or a specific treatment performance. Final specifications should be confirmed through project-specific water analysis and applicable local requirements.
